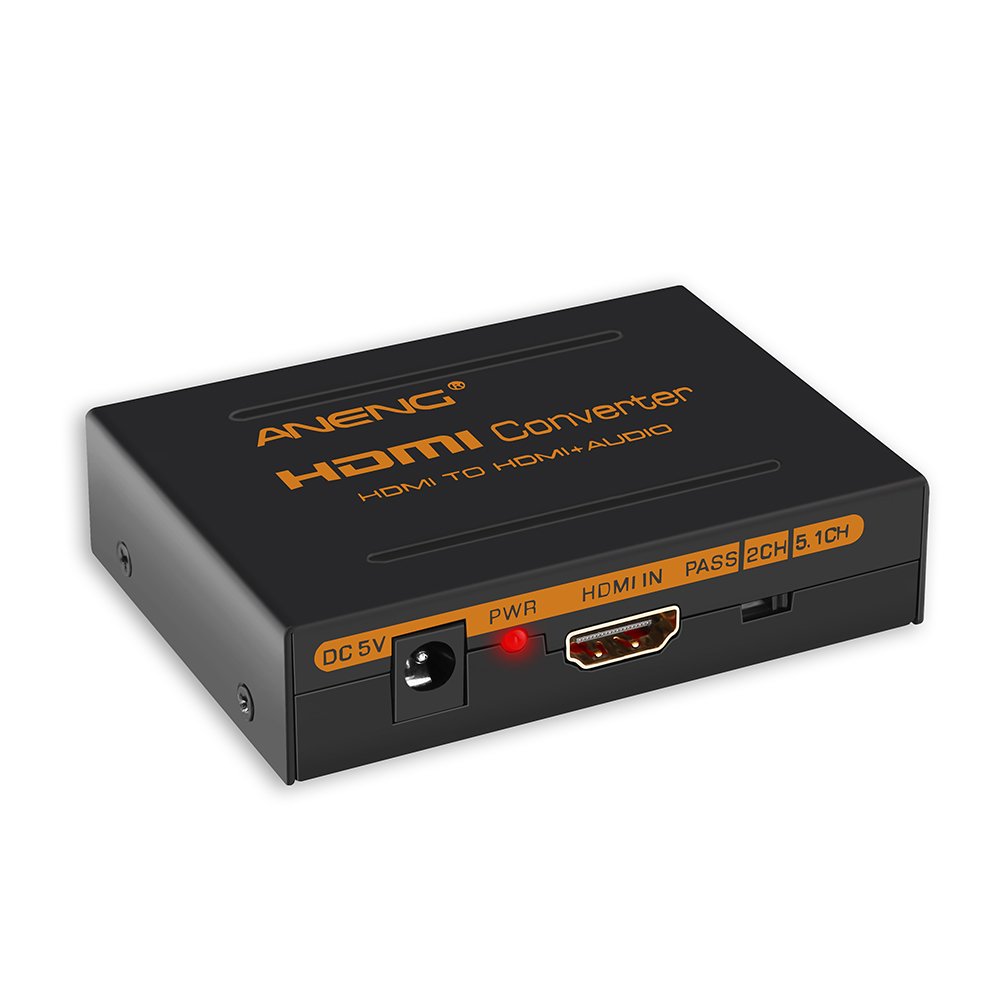

HDMI Audio Extractor, ANENG 4K HDMI to HDMI + Optical Toslink(SPDIF) + RCA(L/R) Stereo Analog Outputs Video Audio Splitter Converter

HDMI Audio Extractor, ANENG 4K HDMI to HDMI + Optical Toslink(SPDIF) + RCA(L/R) Stereo Analog Outputs Video Audio Splitter Converter by ANENG at The Met Theatre. MPN: 4330353460. Hurry! Limited time offer. Offer valid only while supplies last. HDMI Audio Extractor Feature: * This HDMI audio extractor has one HDMI input, one HDMI output, one Optical SPDIF output and RCA L/R stereo audio output. * The HDMI output has identical video and audio signals as the A/V signals coming into its HDMI input. Three switing audio EDID settings: ''* 2CH Mode: It can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output. The RCA L/R output will not have

Product Description & Reviews

HDMI Audio Extractor Feature: * This HDMI audio extractor has one HDMI input, one HDMI output, one Optical SPDIF output and RCA L/R stereo audio output. * The HDMI output has identical video and audio signals as the A/V signals coming into its HDMI input. Three switing audio EDID settings: "* 2CH Mode: It can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output. The RCA L/R output will not have sound if the incoming audio is multi-channel audio (>2CH). Set EDID switch to 2CH for RCA L/T stereo application. " * 5.1CH Mode: The SPDIF optical audio output supports all audio formats up to 5.1CH Dolby Digital 5.1CH / AC3, DTS 5.1CH AND Dolby Digital Plus "DD+" formats. TOSLINK optical audio output does not support higher formats, such as HD audio (Dolby TrueHD, DTS-HD Master Audio, PCM5.1 and beyond). * Pass mode: SPDIF output audio format depends on the TV EDID. The audio and video can be convertered from the HDMI output. Specification: * Iuput Port: 1 x HDMI IN, 1 x DC 5V Port, 3 x EDID Audio(Pass/2CH/5.1CH) * Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x RCA L / R Audio * HDMI resolution :24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i * Support video color format: 24bit/deep color 30bit,36bit * Max bandwidth: 225MHz; Max baud rate: 6.75Gbps * Max working current: 500mA * Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A: * Unit Dimension:84.5X61.8X21 (mm) * Weight: 135g Package Content: * 1 X HDMI Audio Extractor * 1 x 5V DC Power Adapter * 1 X User Manual

Features & Highlights

HDMI to RCA audio extractor - ANENG 4k HDMI to HDMI Converter is Porffesional on Audio Extract, it Provide an Extra SPDIF Audio Ouiput and Extra R/L Analog Audio Output, Also it is a Perfect Solution Support 2.1CH and 5.1CH, It can help to improve your sound quality and enjoy the beautiful music world.
HDMI Audio Extractor - One HDMI Input to One HDMI Output, One SPDIF Audio Output and One RCA R/L Stereo Audio Output
Audio EDID Setting - 2CH for L/R or SPDIF stereo output, 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital
4K HDMI Resolution - Up to 4K x 2K@30Hz, Supports Video Color Format 24/30/36bit,No loss of quality.
Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc.

Additional Information

Manufacturer:	ANENG
Brand:	ANENG
Model:	4330353460
Part Number:	4330353460
Publisher:	ANENG
Studio:	ANENG
MPN:	4330353460
UPC:	754610903816
EAN:	0754610903816
Item Weight:	0.3 pounds
Item Size:	2.44 x 0.83 x 0.83 inches
Package Weight:	0.4 pounds
Package Size:	4.29 x 2.28 x 2.28 inches
